The Best 5G Cellular Modem for Speed & Security
Super Simple. Crazy Fast.
5G & 4G LTE INTERNET FOR HOME & BUSINESS. FEATURING THE QUALCOMM SNAPDRAGON X62 5G CHIPSET
The InvisaGig platform exclusively features the Qualcomm 5G Snapdragon x62 based, Quectel Wireless RM520N-GL Modem

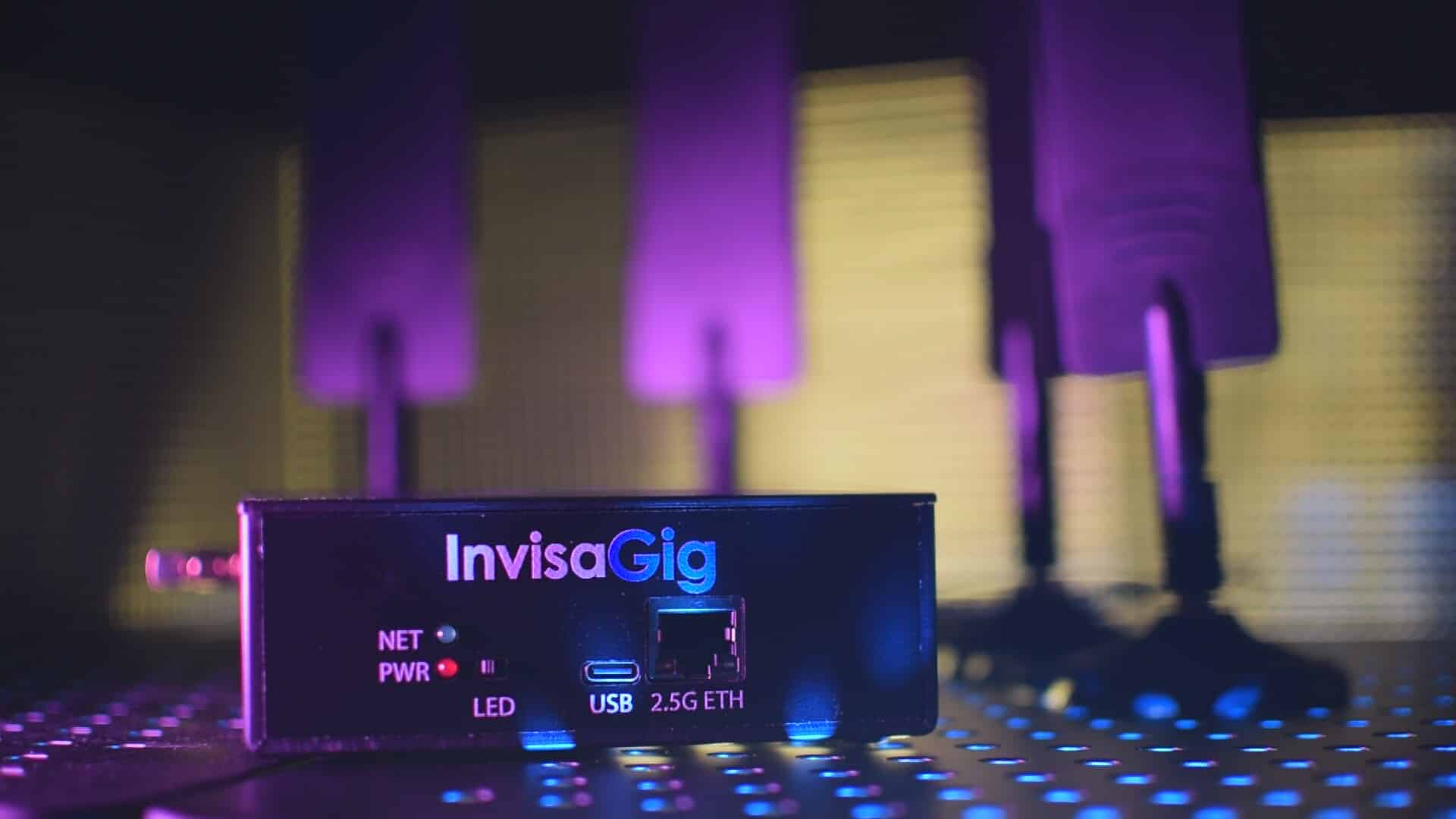

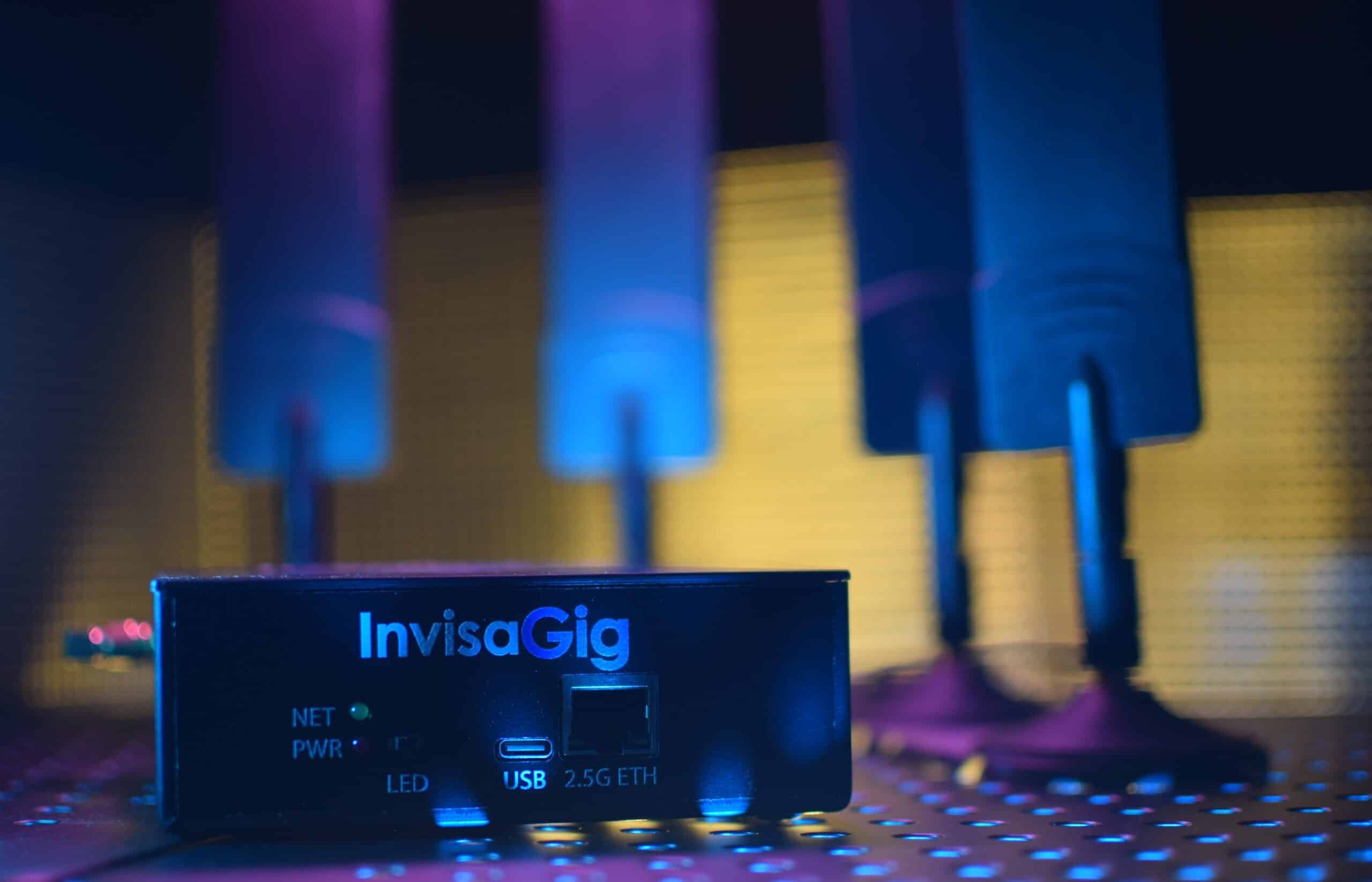

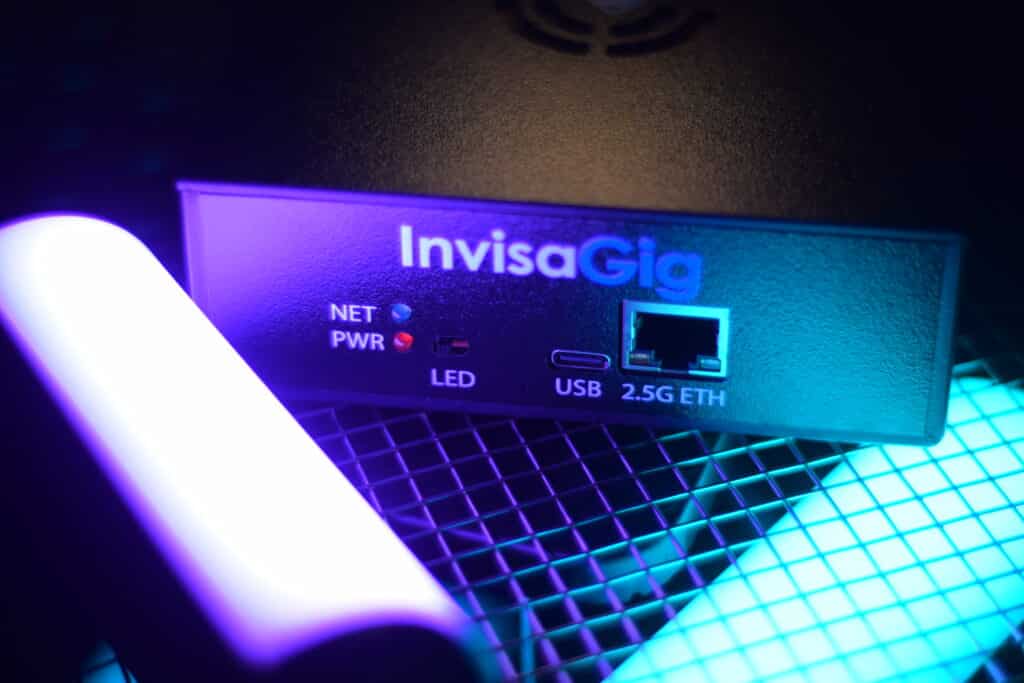

2.5 Gig Ethernet to fully utilize the crazy fast speeds of the InvisaGig
12V DC input low power requirements

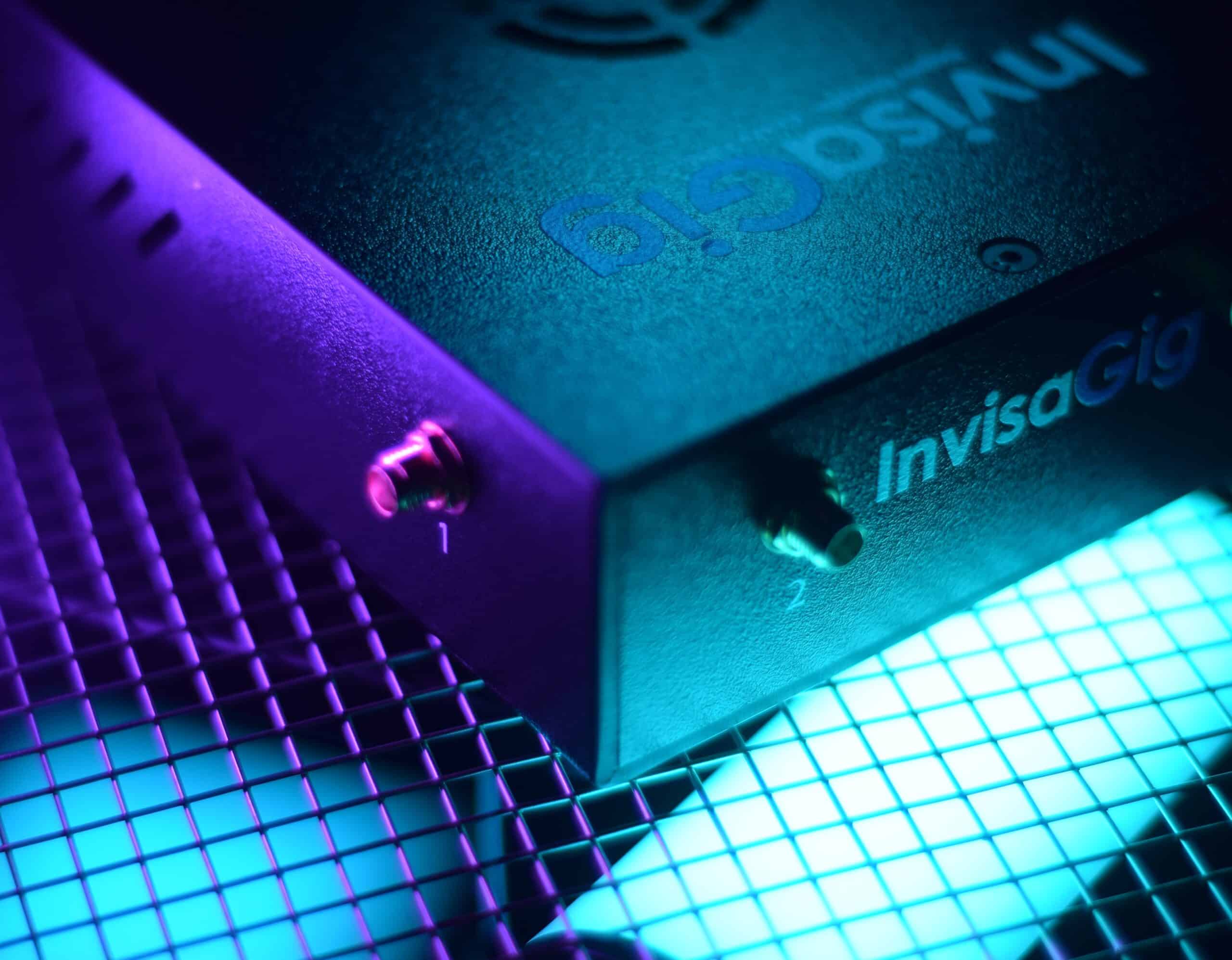

Equipped with 4 SMA antenna connector ports for easy antenna connection and replacement

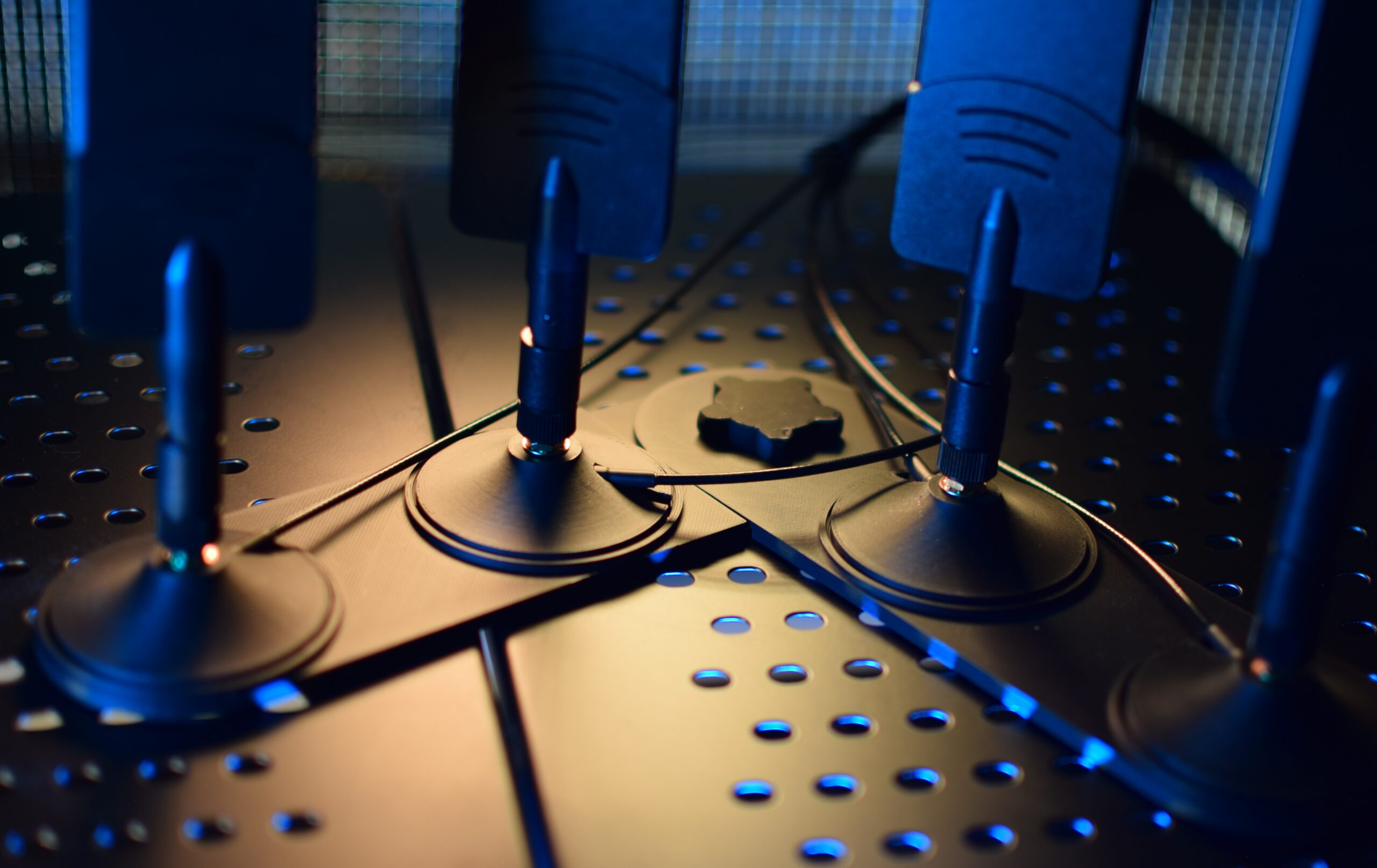

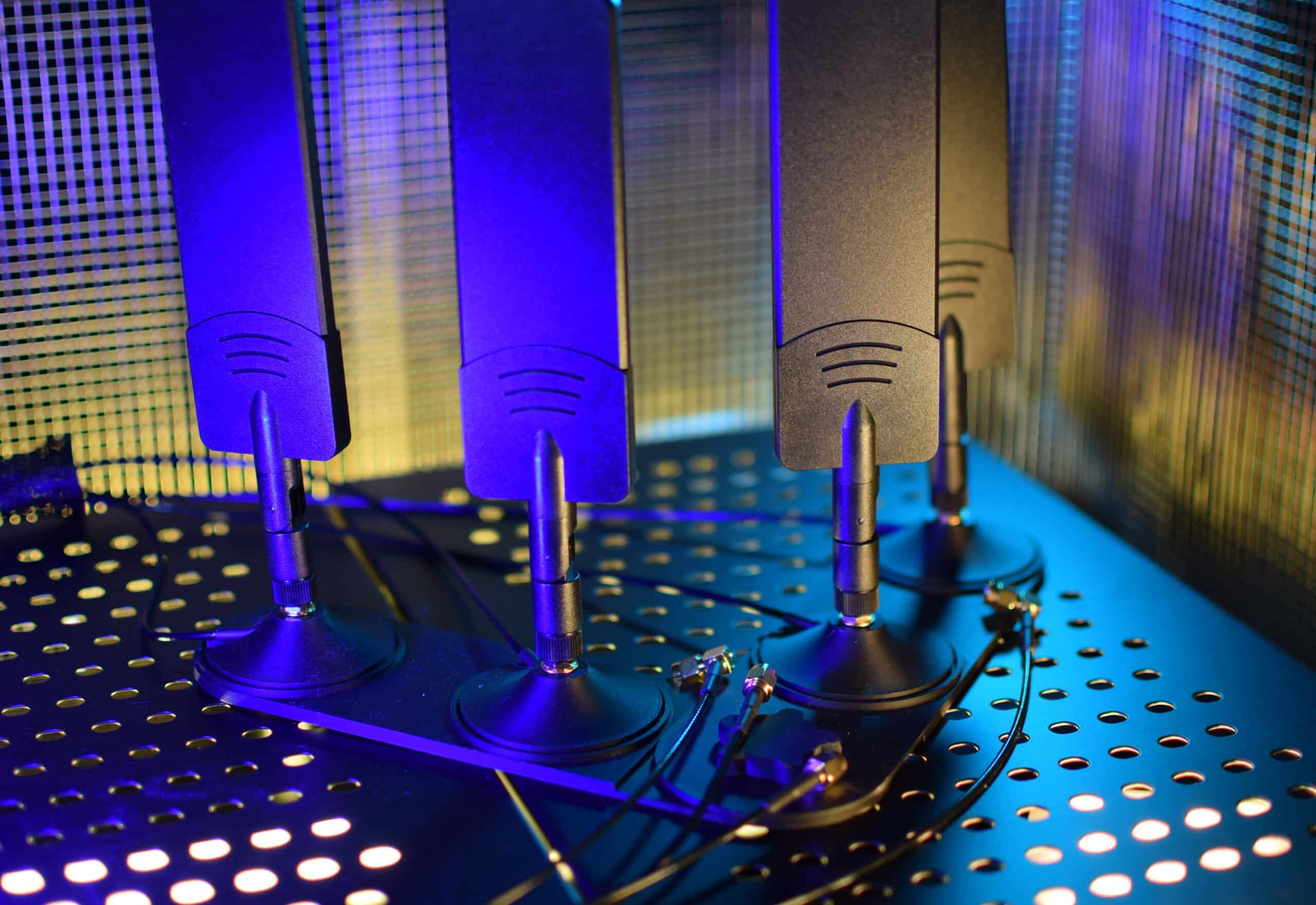

4 ultra wideband, 600-6000MHz, high quality 'paddle style' omni-directional antennas come stock with InvisaGig

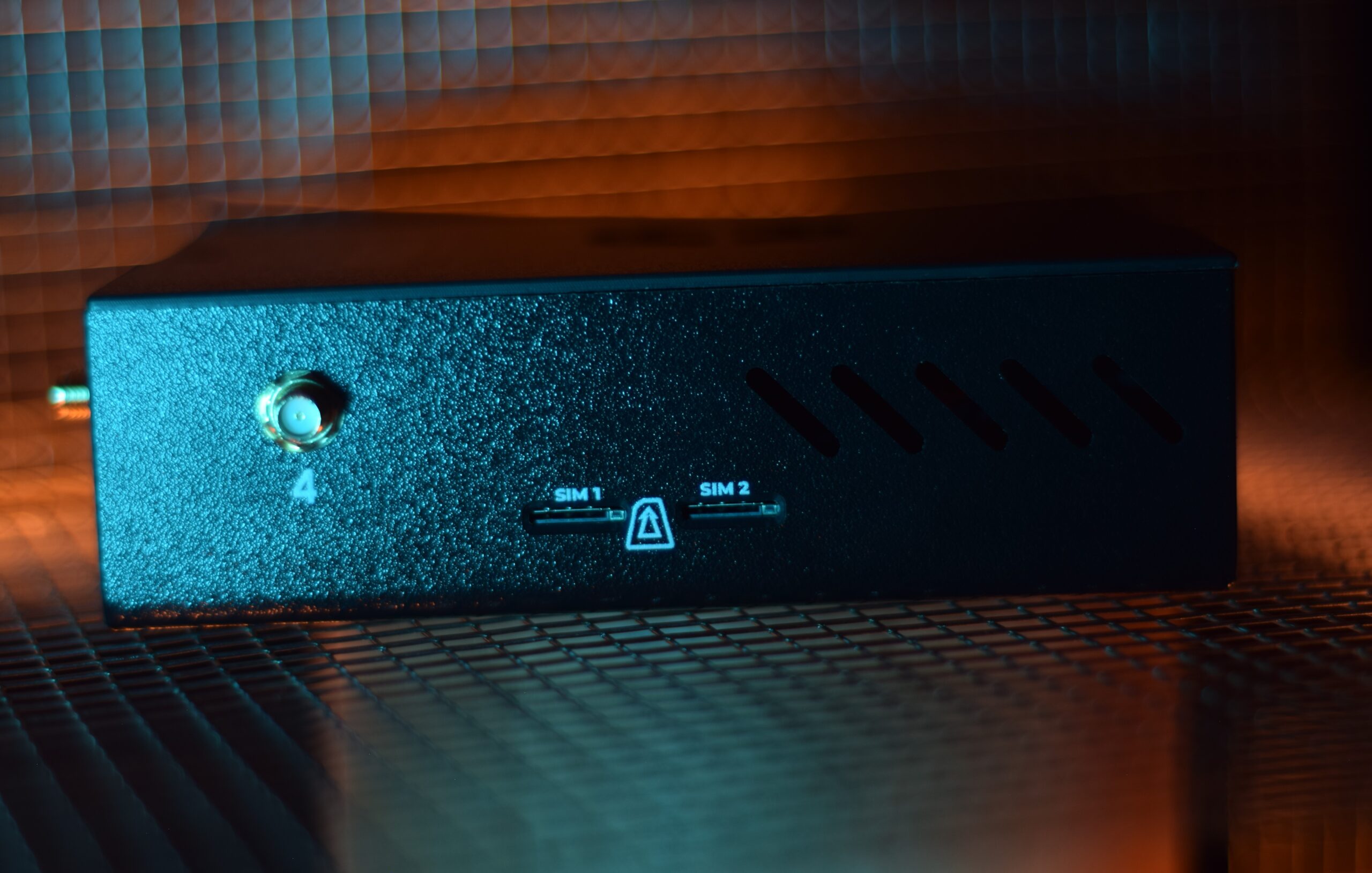

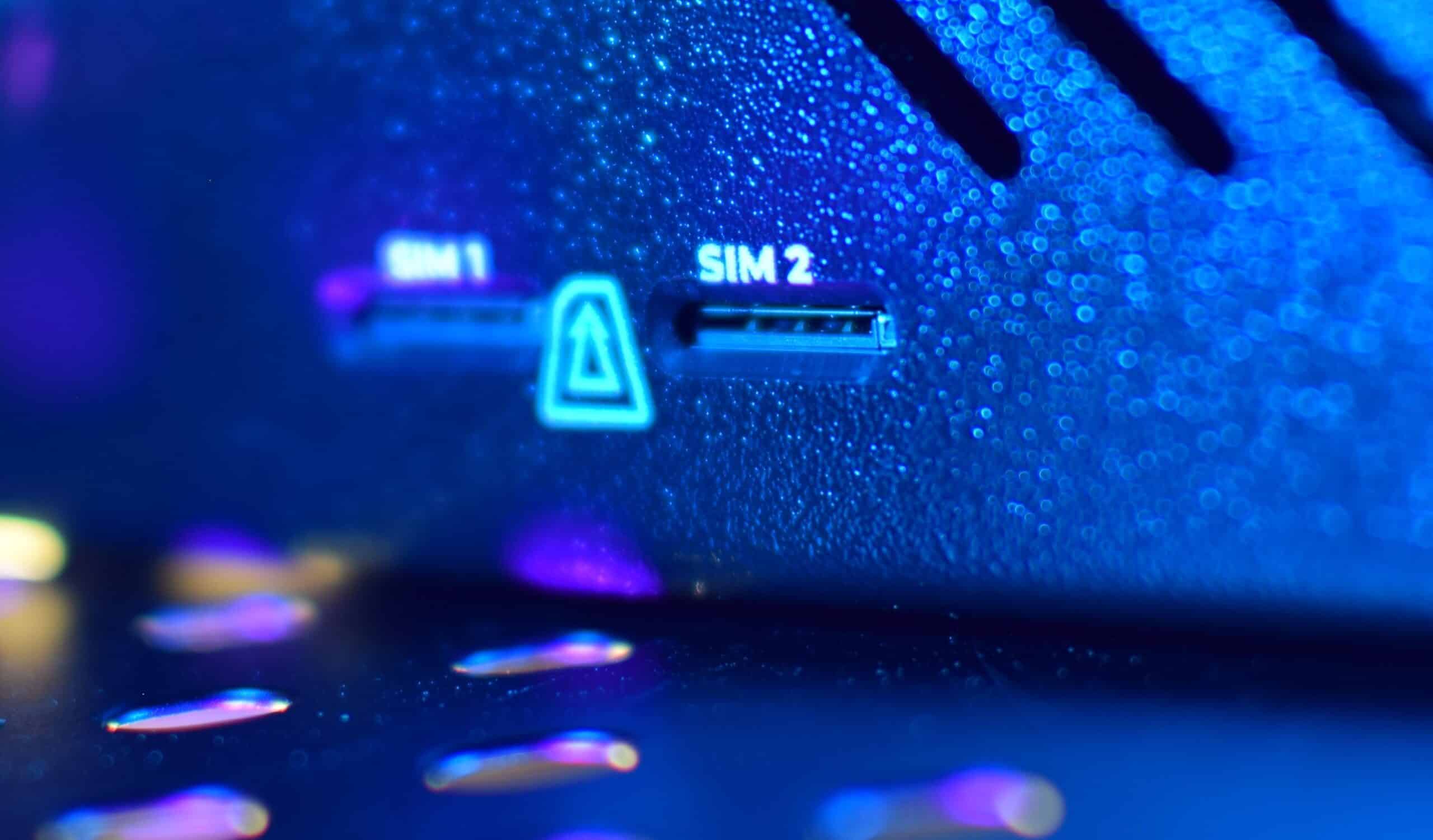

Easy to access Mini-SIM slot for use with all standard SIM card sizes (SIM adapter included)
Efficient, passive cooling paired with a high quality Noctua fan which activates active cooling only if temps reach 65°C and above
Click the icons to explore the InvisaGig 5G modem connectivity features.
Ultra Fast Cellular Internet
Top speed 5G wireless cellular internet connectivity without complex configurations or setup headaches. InvisaGig is instant internet.
The Modular 5G Modem
Designed to work seamlessly with your existing router and Wi-Fi network, InvisaGig delivers full 5G & 4G LTE internet to your home or business.
Built for Bandwidth in USA
Featuring responsive domestic support and thriving user community forums, InvisaGig is the optimal long-term cellular internet modem solution.
For Every Internet Application
InvisaGig is your 5G connectivity solution for: Home & Commercial Wi-Fi Routers, Mesh Wi-Fi Systems, Commercial Servers, & Direct-to-Device
InvisaGig works with every major telecom cellular network and MVNO in the USA.
JUST SLIDE IN A SIM CARD WITH A DATA PLAN AND INVISAGIG CONNECTS TO 5G & 4G LTE.
Finally.
A simple 5G internet connectivity solution for the rest of us.
InvisaGig is designed and manufactured from the ground up right here in the USA to provide the simplest user interface to customers looking for ultra-secure, ultra-fast 5G & 4G LTE cellular connectivity right out of the box. Jump over to the product page to dig into the tech specs and design achievements that make InvisaGig the only choice for unparalleled security and usability in an ever-demanding world of home and business networking.
The InvisaGig 5G wireless gateway is designed and manufactured in the USA.
What's In The Box

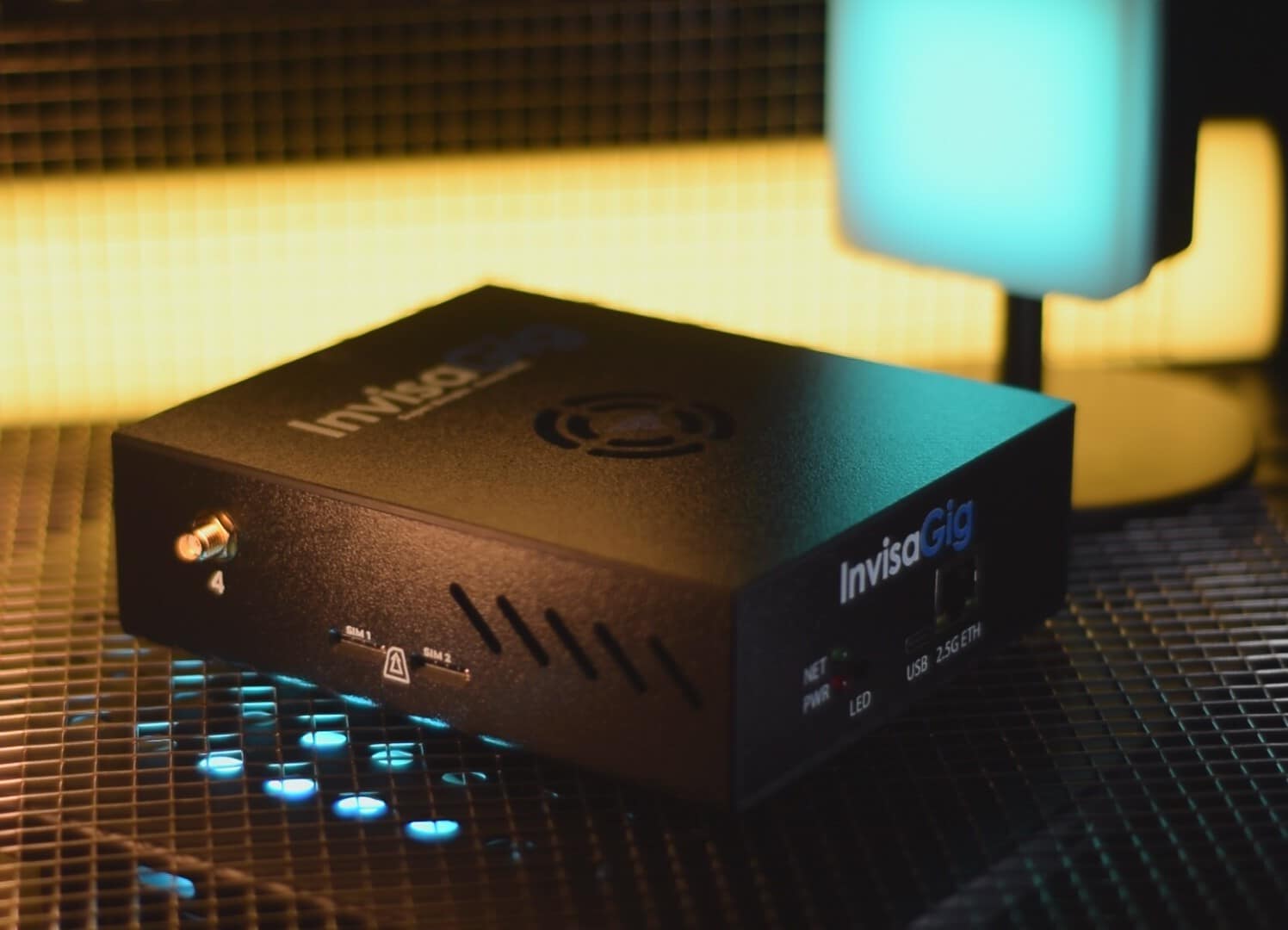

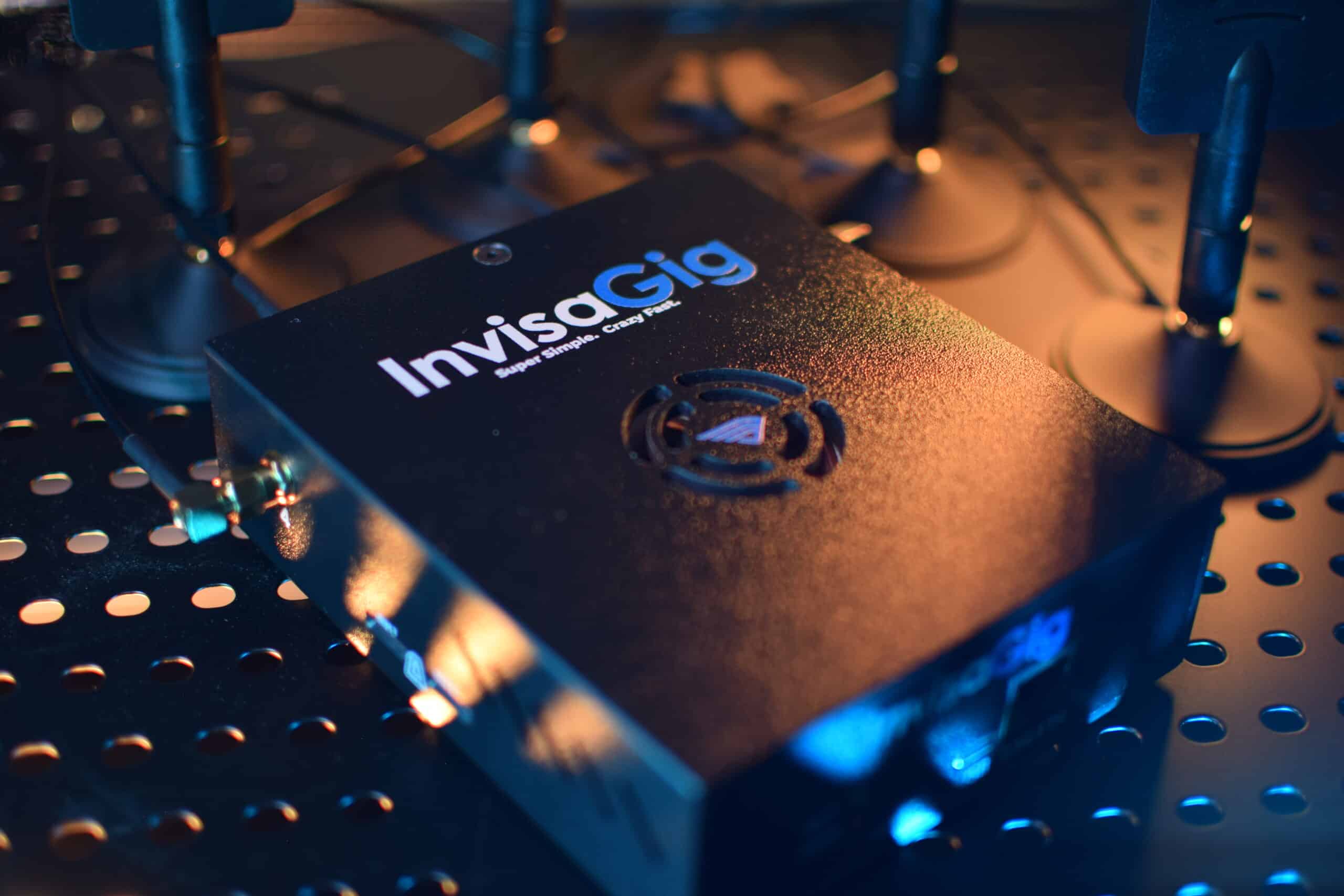

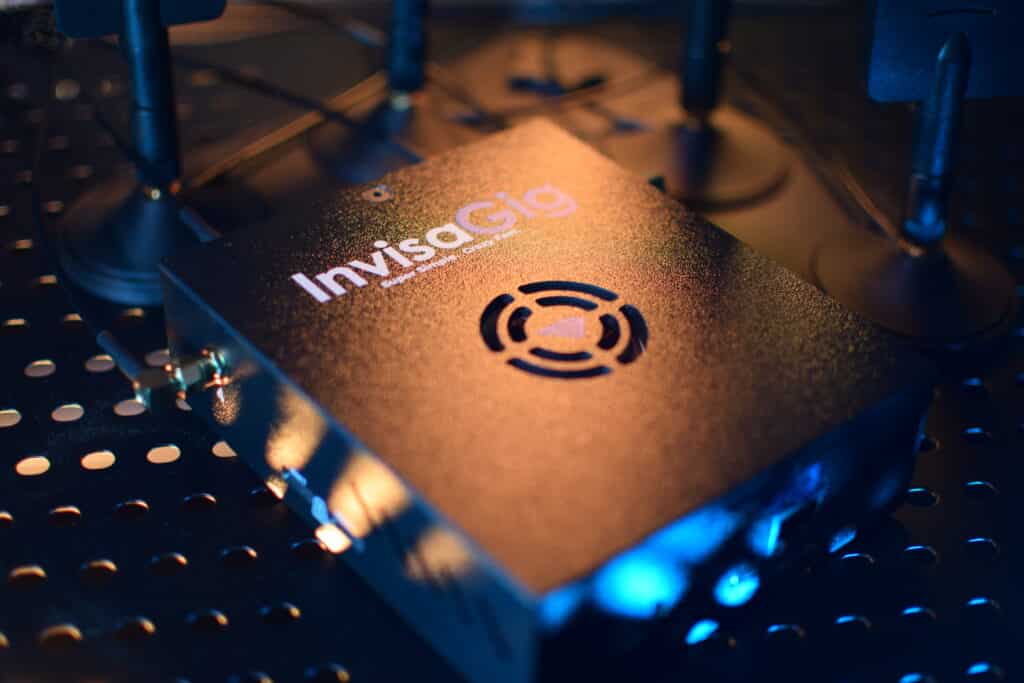

InvisaGig 5G & 4G LTE Cellular Modem unit
featuring the Qualcomm Snapdragon x62 System on a Chip (SoC) and the Quectel Wireless RM520N-GL modem

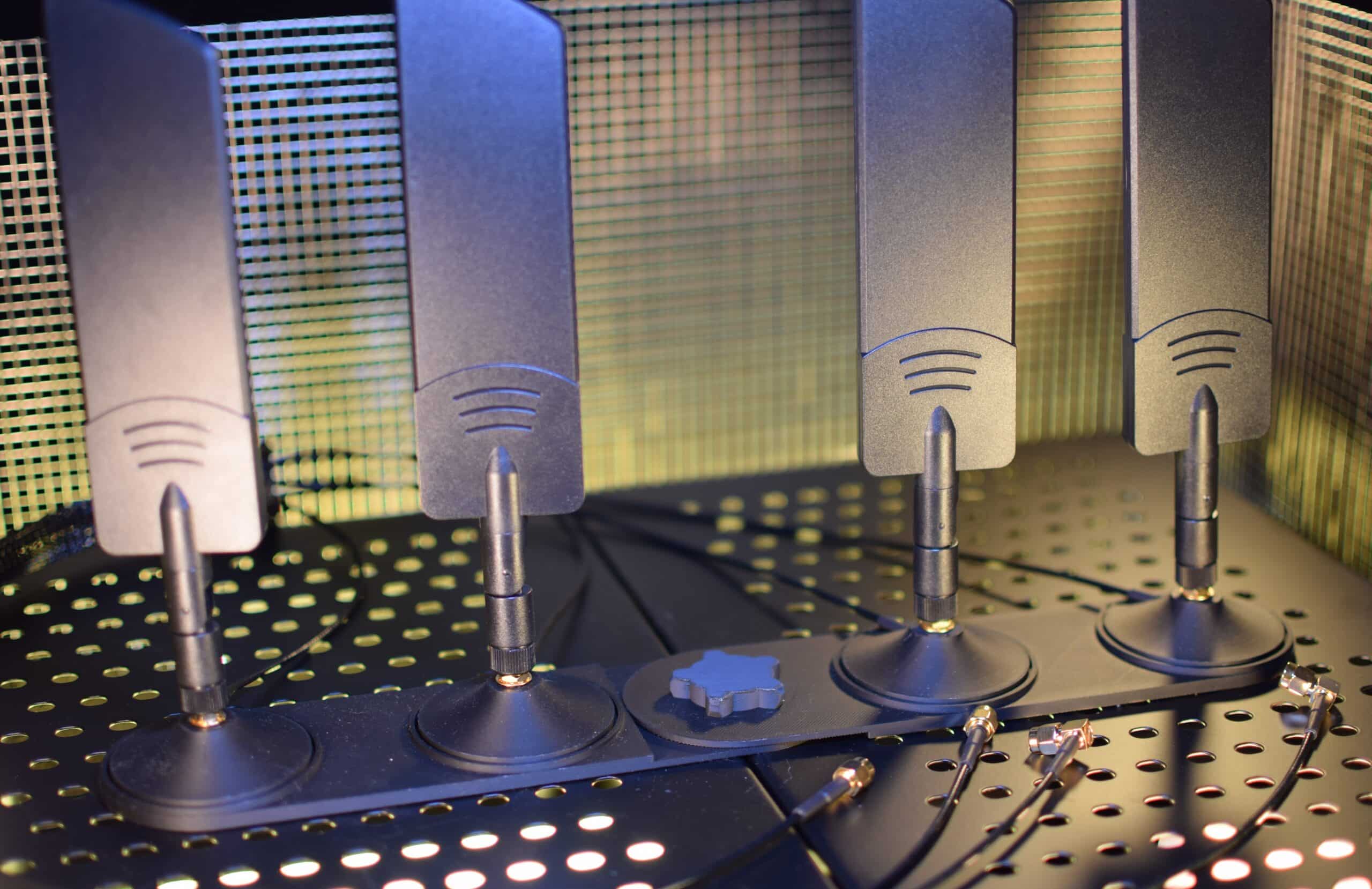

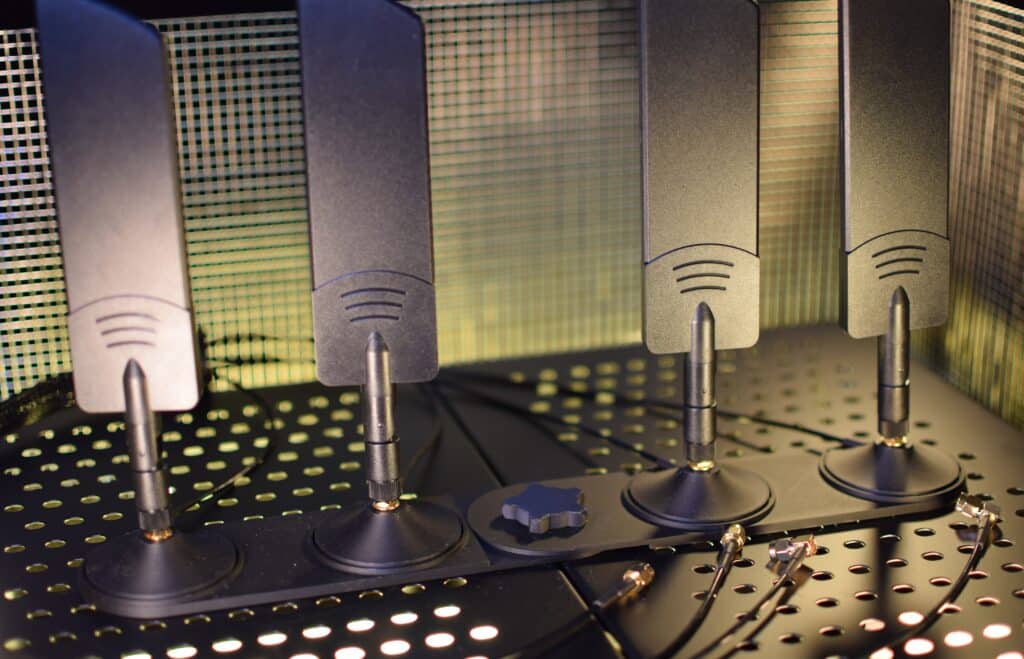

(4) Detachable Antennas with SMA Connectors
600-3800MHz Cellular Omni-Directional Paddle Antennas (SMA Connectors)
Cat6A Ethernet Cable & Power Supply
high speed bundled networking cable to easily exceed bandwidth maximums of virtually any Internet Service Provider (ISP)
SIM Card Adapter Kit
SIM ejector tool with Micro SIM & Nano SIM adapters to ensure compatibility
The Most Secure 5G Modem
Equal parts speed and security, InvisaGig delivers safety and privacy at the speed of 5G.
Hi everyone! I'm Richard — one of the co-creators of the InvisaGig 5G modem. I want to tell you about the design philosophy that went into creating the perfect balance of security and speed to deliver the best 5G cellular modem on the market...
As a startup company entering into a crowded networking hardware space, we knew at the outset we were going to have to offer customers something that the big players were falling short at delivering. Product cycle after product cycle, we kept seeing the same industry patterns: incremental modem feature upgrades, but none of them fully addressed what we viewed as a fundamental failure to deliver ironclad digital security while at the same time providing modular simplicity that worked with a customer's existing home or business network.
The solution appeared simple: solve the problem at the point of contact with the internet. InvisaGig was designed to serve as the gateway between existing network hardware and the net, while at the same time removing traditional security risk vectors from the actual modem, such as Bluetooth, Wi-Fi, and conflicting / redundant software systems that create network vulnerabilities. By removing these failure points, and consolidating the user configuration experience into a super simple interface to control the entire network at the point of contact with the internet, the result is a streamlined gateway that takes only minutes to connect, while providing blazing fast, unmitigated network speed for as long as 5G is the standard (it's gonna' be here for a while!).
Whether you are an individual customer or an MSP looking for the best solution, I invite you to view the product reviews in our web store to see how others just like you are mobilizing InvisaGig to achieve the fastest — and safest — 5G internet experience for their home and business.
Power & Privacy in Your 5G Modem

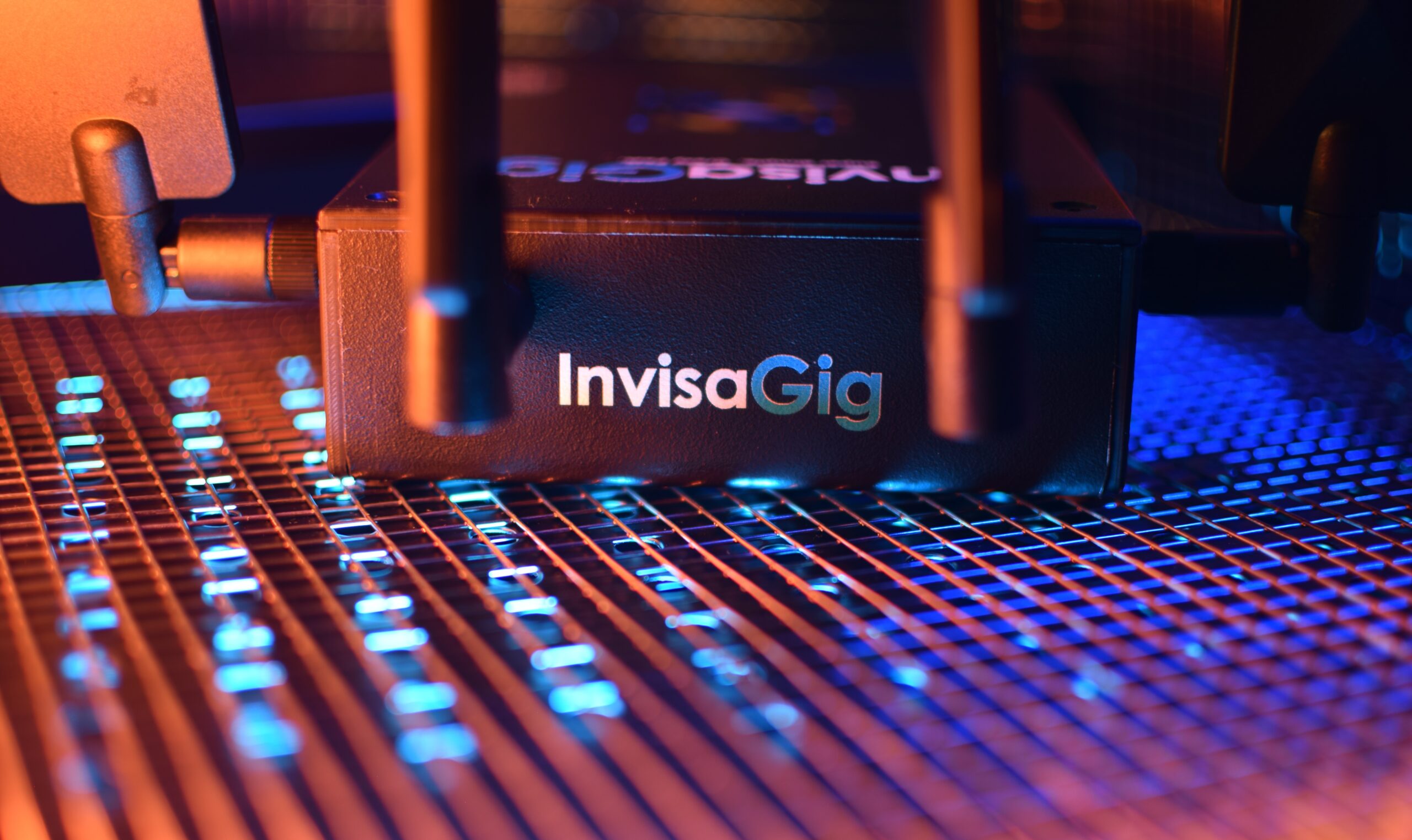

Let's pop the hood to see the bleeding edge tech powering the world's most user-friendly 5G cellular modem.
Powered by the Qualcomm Snapdragon x62 SoC
Capable of 4.4 Gbps max theoretical download throughput, InvisaGig leverages the advanced 5G technology of Qualcomm's Snapdragon x62 SoC (System on a Chip) to deliver faster speeds than any cellular network will provide to users for years to come.
Featuring the Quectel RM520N-GL Modem
We install the modem and pair it with our purpose-built platform, letting you tap into the blazing fast potential of 5G technology. There's no complicated installations or confusing configurations; just crazy fast cellular data connectivity to 5G & 4G LTE networks.
Supports Every 5G & 4G LTE Band for All USA Carriers
InvisaGig works on every major telecom cellular network and the numerous MVNOs (Mobile Virtual Network Operators) that use the same networks. InvisaGig connects to every current cellular band in the USA, including those used by T-Mobile Home Internet, AT&T Internet Air, and Verizon Home Internet.
A Versatile, Adaptable, & Modular Connectivity Solution
Equipped with four SMA antenna connectors, you can use the included ultra high quality paddle style dipole omni-directional antennas, or you can connect high quality coaxial RF cabling to upgrade your signal with a high powered outdoor antenna system.
InvisaGig 5G Modem System Specs
InvisaGig 5G & 4G LTE Modem Connectivity
- Quectel Wireless RM520N-GL Modem
- Qualcomm Snapdragon x62 5G Modem Chip
- Cellular network speeds of up to 3.4Gbps (2.5Gbps actual Ethernet throughput maximum)
- Supports 4G and 5G carrier aggregation
- ‘Stand Alone’ 5GNR and ‘Non-Stand Alone’ (LTE+5GNR) operation supported
- FirstNet Band 14 support
- T-Mobile Band 71 support
- LAA, UC band, and C band support
- Four antenna ports for 4×4 MIMO support
- Supports 2x 5GNR carrier aggregation
- Upload speeds rated up to 900Mbps
- Functions safely on all major US carrier networks according to their own defined standards
- Stand Alone 5GNR band support: n1 / 2 / 3 / 5 / 7 / 8 / 12 / 13 / 14 / 18 / 20 / 25 / 26 / 28 / 29 / 30 / 38 / 40 / 41 / 48 / 66 / 70 / 71 / 75 / 76 / 77 / 78 / 79
- Non-Stand Alone 5GNR band support: n1 / 2 / 3 / 5 / 7 / 8 / 12 / 13 / 14 / 18 / 20 / 25 / 26 / 28 / 29 / 30 / 38 / 40 / 41 / 48 / 66 / 70 / 71 / 75 / 76 / 77 / 78 / 79
- LTE Band Support: B1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 13 / 14 / 17 / 18 / 19 / 20 / 25 / 26 / 28 / 29 / 30 / 32 / 66 / 71
InvisaGig Cellular Modem Hardware Platform
- Carefully curated selection of high-speed 5G cellular modem components
- Field tested industrial hardware components for long term reliability

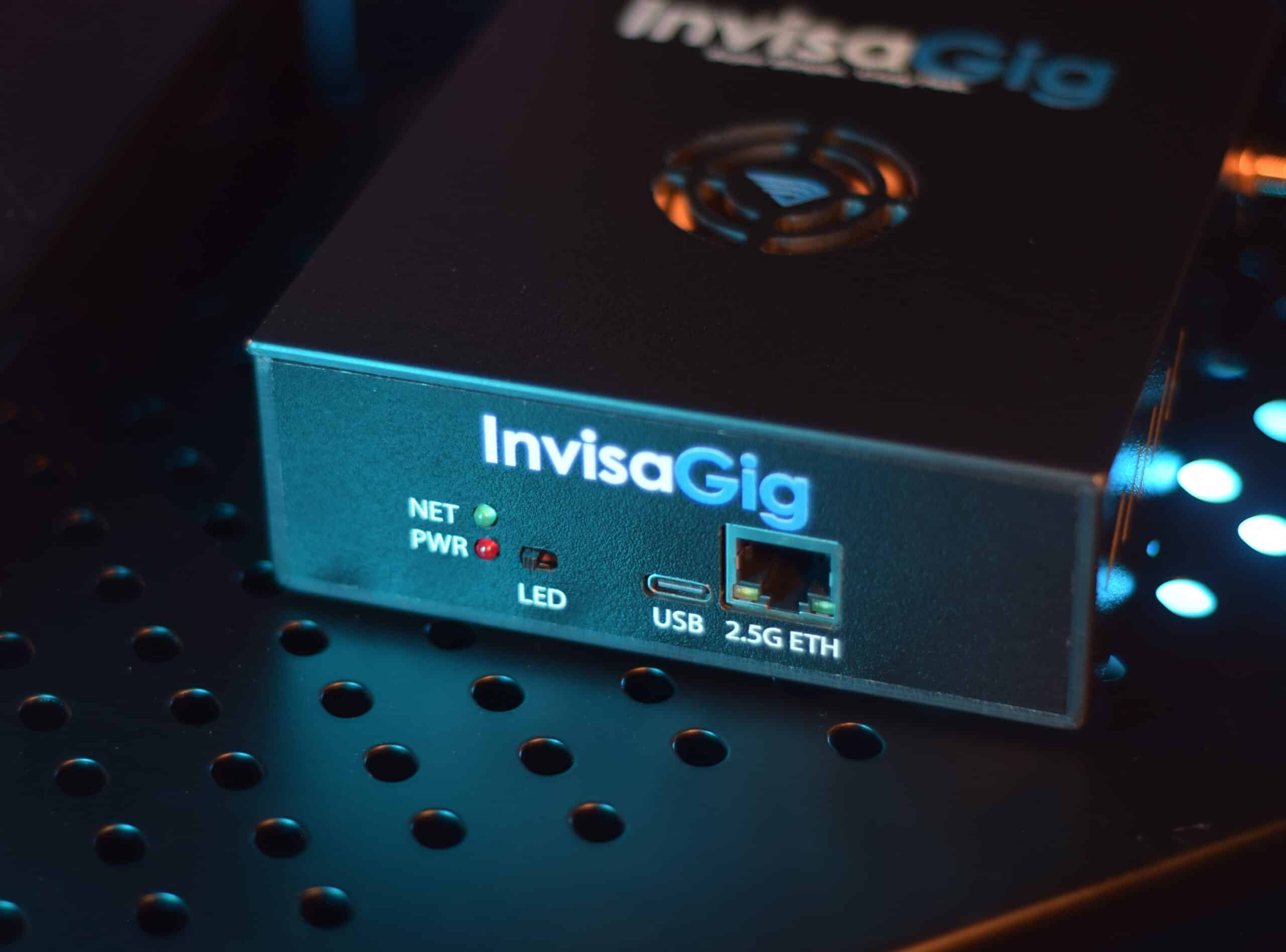

- 2.5Gbps Ethernet port provides superfluous throughput
- 12V DC standard barrel connector (with included AC adapter)
- Supports from 5V to 24V DC – (maximum power supply of 48W; recommended minimum power supply of 24W)
- 5V Input not recommended when using with a host with a 2.5G Ethernet port
- Supports from 5V to 24V DC – (maximum power supply of 48W; recommended minimum power supply of 24W)
- High quality Noctua brand fan providing low-noise active cooling to ensure peak hardware performance and longevity
- Intelligent thermal control initiates active cooling only when temps reach 65°C+ to ensure low-noise operation and long fan life
- High quality, short length antenna cabling to reduce RF interference inside the unit
- Optimized enclosure size to decrease RF signal noise and provide peak cooling efficiency

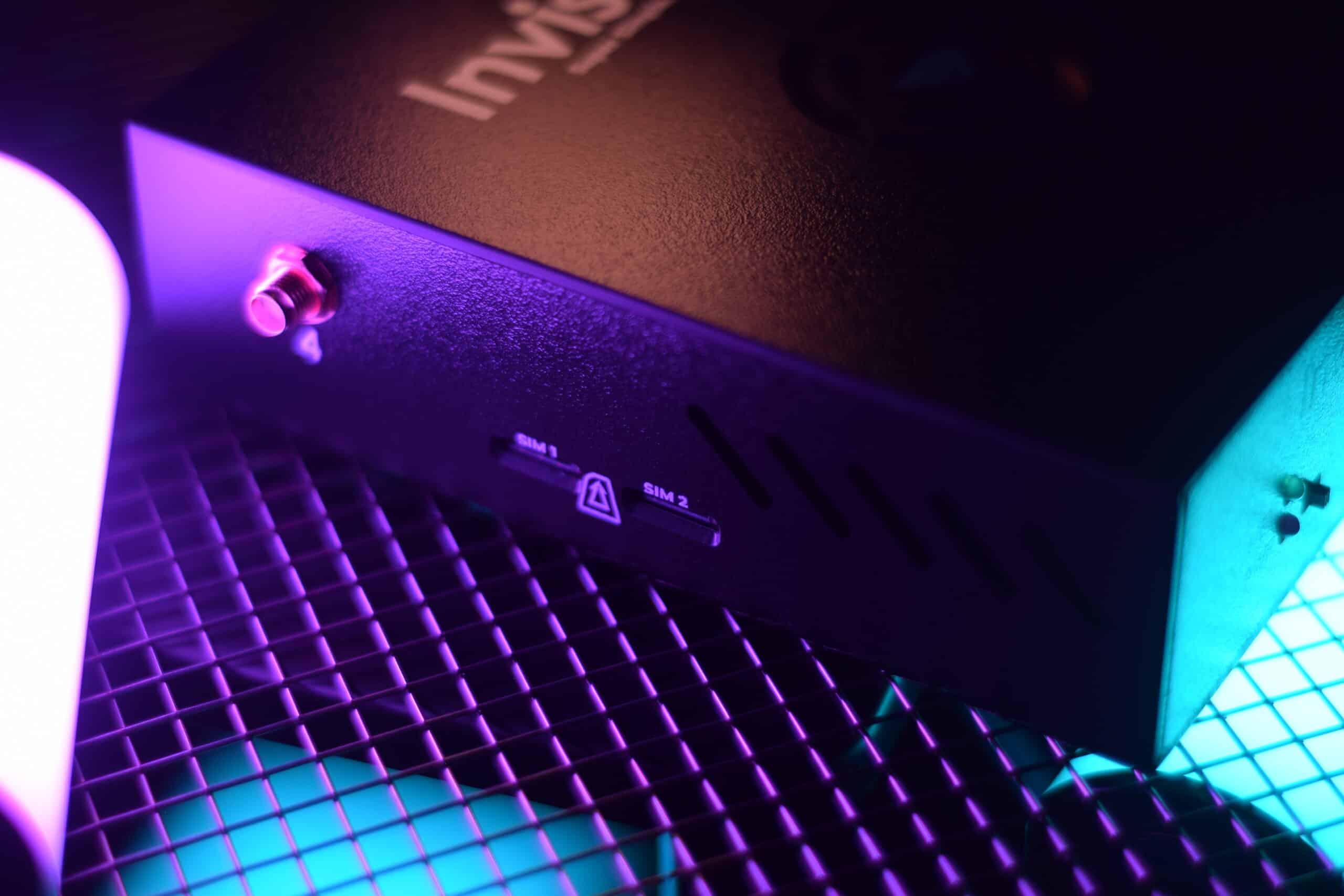

- Easy access ‘Mini’ SIM card slot, and included SIM adapter set for use with all industry standard SIM card sizes
- High quality and highly durable ABS plastic case manufactured in the USA
- Fully assembled and tested in the USA (Tennessee)
- All design and custom software is USA made and maintained
- *Electronic PCB components are commodity items made overseas. There are no claims to otherwise. A completely US-made PCB design is in the plan, but it will take time to release. The modems used in the InvisaGig product will likely always be from overseas (or soon Mexico) manufacturers; until a US chip manufacturer begins making them.
InvisaGig Wireless Modem Software Platform
- ‘Super Simple’ configuration interface that doesn’t require a fancy engineering degree to operate
- Some setups may be as simple as inserting the SIM; others may require minimal input via the menu driven selection options
- No special client software required
- Access the configuration interface via any laptop/desktop web browser (UI is not mobile optimized so the experience on phone/tablets may vary, thus we recommend using a laptop or desktop workstation)
- Text based menu-driven interface for fast, intuitive setup and management
- Secure password protected settings
- Designed for regular folks
- InvisaGig is a turnkey connectivity solution for folks who need Internet connectivity that ‘just works’ and need to focus on priorities other than tweaking or tuning settings in order to keep their Internet connection up
- We do not provide a ‘power user’ or ‘tinker-friendly’ setup; InvisaGig is a wholly managed platform with a single user interface that provides connectivity over a single Ethernet port with no other interfaces provided
- Advanced DIY users who prefer to spend hours on building and configuring their own device need not apply Unfortunately, we cannot offer any warranty or support to those who disassemble or attempt to modify their units
- Key features include:
- Live signal status for near real-time connection stats making ideal unit and antenna placement easy
- Full connection details, including device and APN settings
- Band locking
- Cell tower / band scanning
- Cell tower locking
- Multiple InvisaGig unit configuration
- Carrier profile selection (both automatic and manual)
- ‘Over the Air’ InvisaGig system updates
- Free for the life of the device
- Simple to check from the main menu, and quick to install (usually just a few seconds)
InvisaGig Modem Physical Specs & More Details
- InvisaGig Unit Specs:
- Overall Case Size (Without including the antenna connectors): 5.375″ x 4.563″ x 1.625″
- SMA antenna connectors extend roughly 0.3125″ from the case
- Weight: 10oz
- Weight with antennas attached: 16oz
- Overall Case Size (Without including the antenna connectors): 5.375″ x 4.563″ x 1.625″
- Antenna Specs at a Glance:
- Overall Size: 8.125″ x 1.5″ x 0.5625″
- 600-6000MHz ultra-wide frequency range support
- Standard SMA connectors
- Flat ‘paddle style’ dipole omni-directional antenna design
- Packaged InvisaGig Product:
- Dimensions: 8.5″ x 6.5″ x 3.75″
- Weight: 32oz
- Included Items:
- InvisaGig Unit
- Power Supply
- SIM Card Adapter Set
- Ethernet Cable
- 4 Detachable antennas with SMA Connectors
"What is InvisaGig?"
InvisaGig is a 5G Wireless Gateway that provides a complete internet connectivity solution:
- The InvisaGig device is an easy-to-use connectivity platform, NOT another router.
- InvisaGig is designed to work seamlessly with your existing router or Wi-Fi system.
- Eliminate complexity by simply configuring InvisaGig and connecting it to your existing router's Ethernet WAN port.
- No router? No problem! InvisaGig can be directly connected to a device such as a PC or mobile device.
The Simplest 5G Modem User Interface for Quick Setup and Straightforward Configuration
We made a modem user interface without frills and fancy graphics, to keep your setup and ongoing user experience simple and straightforward. There is no “advanced” user mode with the InvisaGig 5G modem. This is advanced tech, but with simple controls.
Blazing Fast 5G Internet Connection to Any Device with an Ethernet Port
Already have a router? Maybe you even have one with a cellular modem, but you want an upgrade to take advantage of the latest 5G technology? With InvisaGig, there is no need to go through the hassle of replacing your existing system just to get the fastest speeds available. Simply plug the InvisaGig unit into your router’s WAN port as a new Internet source and be up and running, at blazing speeds, in no time!
What's new with InvisaGig?
InvisaGift: Give the Best Modem Hardware to Someone Who Needs Better Internet Connectivity
For the remote worker in your life, it’s critically important that they have robust and reliable internet connectivity. But as remote workers more and more rely on extended periods of distance working, with projects and tasks of increasing importance, could someone you know benefit from stronger and faster internet connectivity?
Click to learn more >>
Enhance & Protect Your Internet Experience Using ControlD & pfSense
Using a cellular access device like InvisaGig to connect to the Internet is fast and convenient. However, since most cellular plans use shared IP addresses or addresses from a common pool across each carrier sometimes this may cause unexpected issues when accessing certain websites or services. Additionally, you want to ensure your family is kept safe from accidental malware infection, inappropriate advertising, scam sites, and/or age-inappropriate content.
Click to learn more >>
Remote Access to the InvisaGig 5G Modem with the Tailscale VPN Service
Here at InvisaGig, we finally introduced a feature for remote access anywhere in the world between two different devices on an encrypted, tunnel point-to-point connection using the Tailscale VPN service. Tailscale is free for anybody that wants to use it, so it's not a paid feature; it's just more versatility and value being added into your InvisaGig cellular modem.
Click to learn more >>
The Optimal Configuration for Using the InvisaGig Cellular Modem with pfSense
When using the InvisaGig as WAN on your pfSense install, make sure it's configured for optimal performance. While your InvisaGig should be ‘plug and play’ when using it as WAN under pfSense in most cases, there are some settings that can be tuned to achieve the fastest, most stable connection.
Click to learn more >>
Using pfSense & WireGuard to Get a Public IP for Open NAT, Plex, & More
This tutorial will focus on solving some typical issues that can occur when using a cellular connection to access the Internet. Unless you have a cellular plan that provides a unique, statically assigned, publicly routable IP address (something typically only available to business accounts) you may face one or more of the following struggles...
Click to learn more >>
Finding the Best Modem Solutions for MSPs Providing Wireless Internet Access
InvisaGig was built with MSPs in mind, and we know that margins are razor thin for profitability in the managed internet service space. The InvisaGig price point was set with a priority of making the device the best choice for providing wireless internet from MSPs through the lenses of upfront cost of entry, continued annual operation, and (in)frequency of customer service calls required as a result of the device. We believe the InvisaGig is the clear choice, hands down.
Click to learn more >>
Creating the Optimal Home or Business Network with the InvisaGig Cellular Modem
This article explores an innovative solution in which a 5G cellular access device, augmented with a tailored networking stack, provides a robust and high-speed internet connection suitable for a wide range of applications. We’ll break down the technical aspects of this solution while demonstrating why its lower cost and higher reliability make it an ideal alternative for homes, offices, and remote locations.
Click to learn more >>
Locking Onto a Cell Tower With the InvisaGig 5G Modem
Richard from InvisaGig here with an article to help you maximize value from your InvisaGig 5G cellular modem, as well as your cellular data plan. I made a new video explaining the super simple way to manually set a cell tower lock when the cell scan seems to refuse to show a band you know you can and have connected to. In this guide, we’ll walk through the process of manually setting a cell tower lock on the InvisaGig. While this is a slightly more advanced topic, the process remains simple and fast—just like the InvisaGig itself!
Click to learn more >>
The Strongest Links In Your Networking Solution
Looking for the ultimate in cellular data reception? While the InvisaGig 5G modem does include 4 industry-leading antennas out of the box, what if you need the power of a full-on directional panel antenna with outdoor mounting to take things to the final boss level of cellular data reception? We've got you covered...

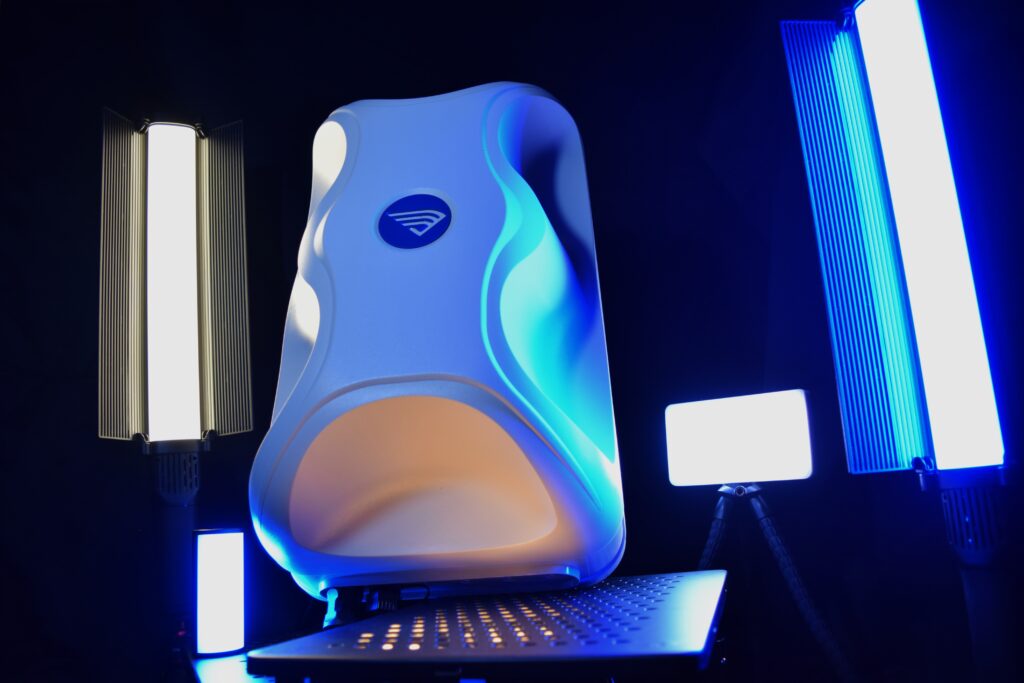

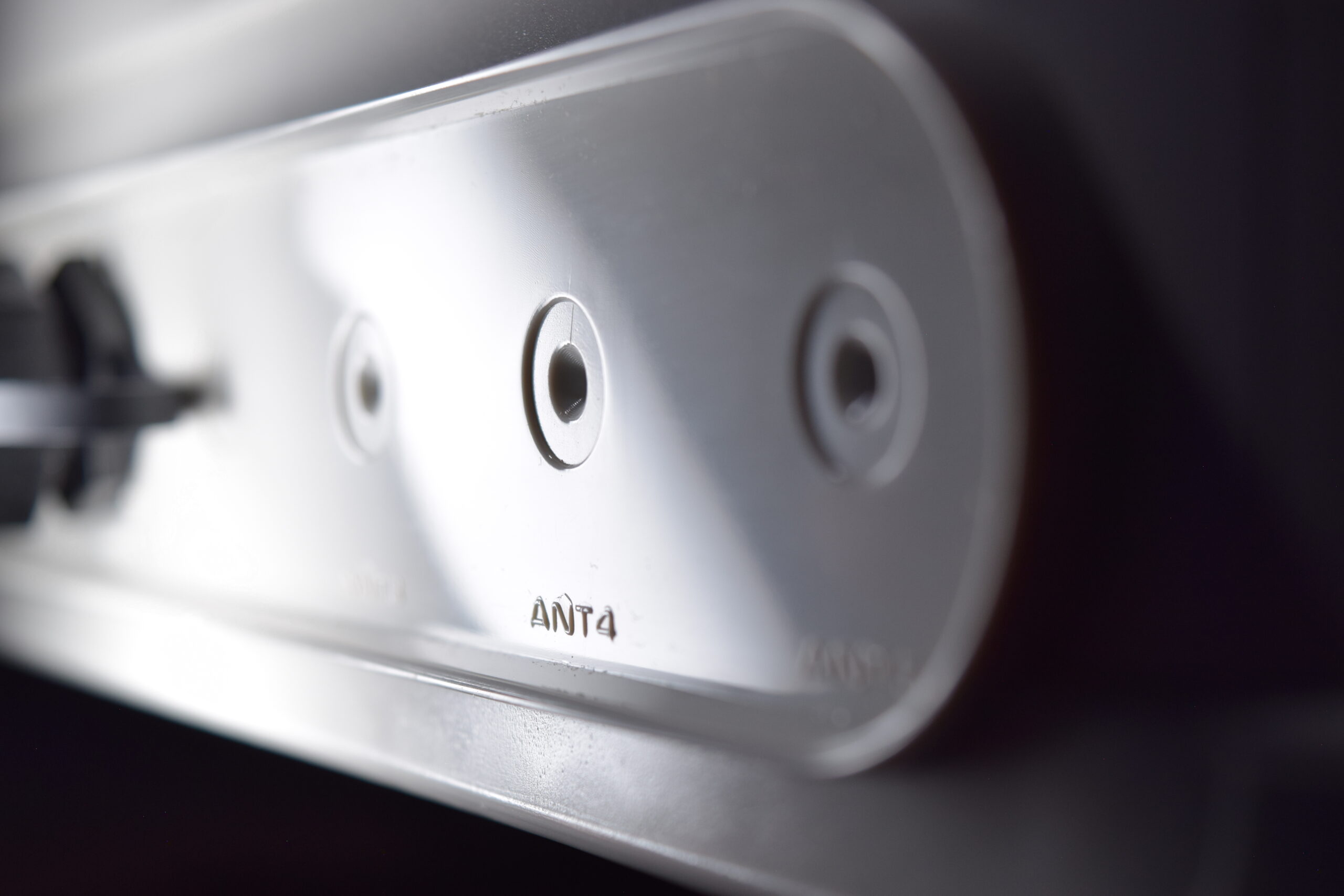

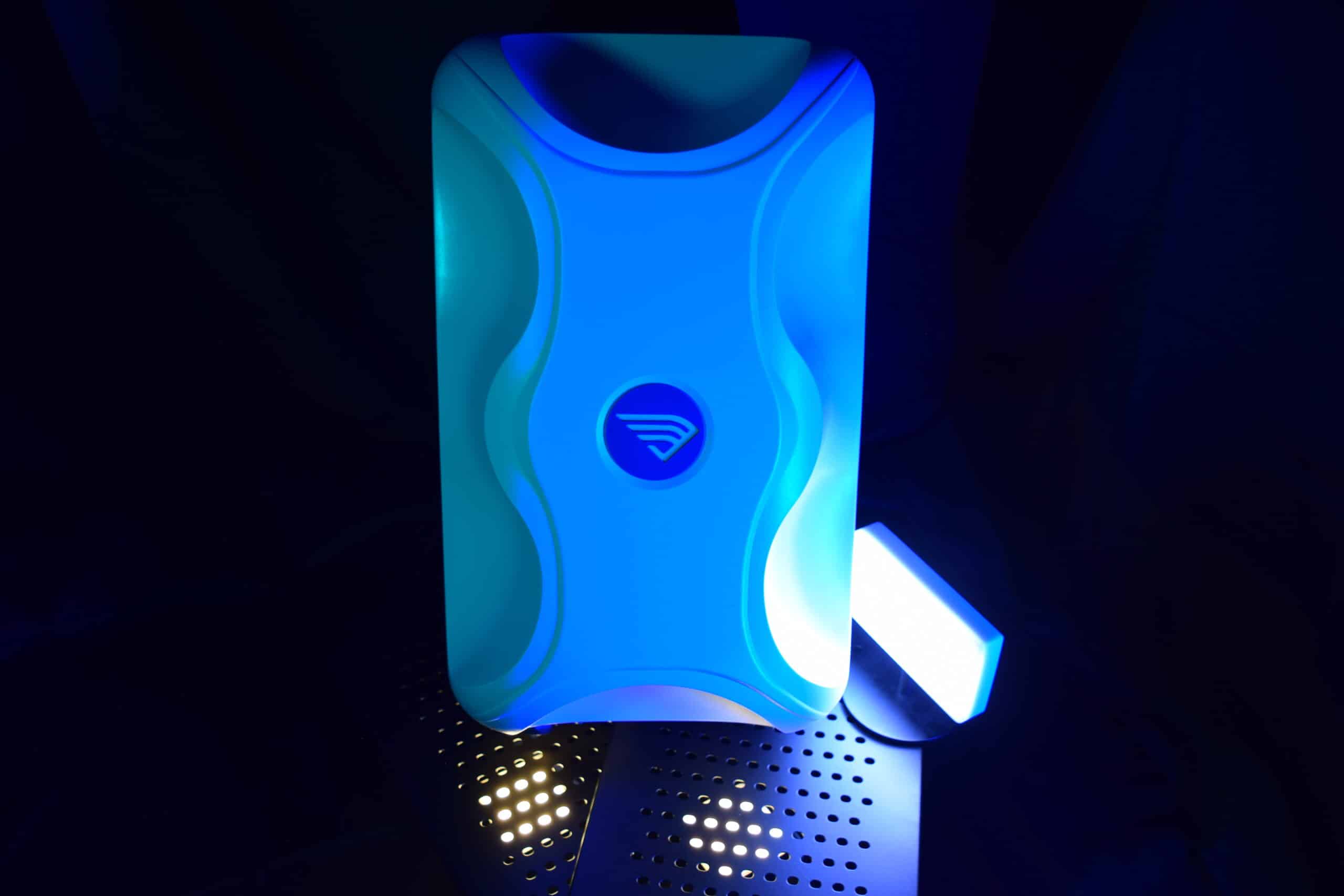

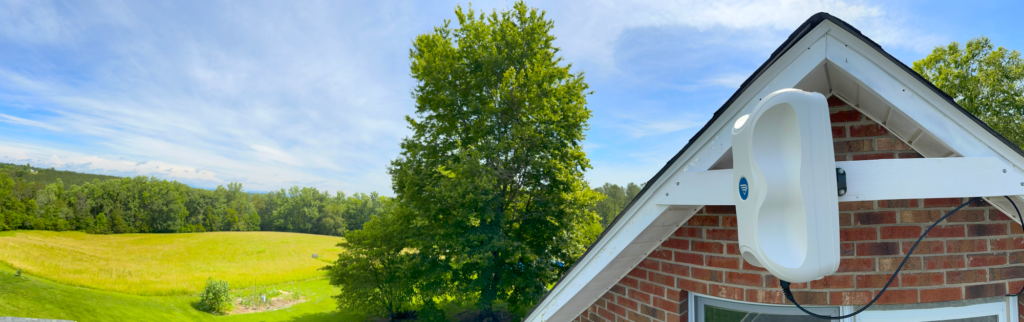

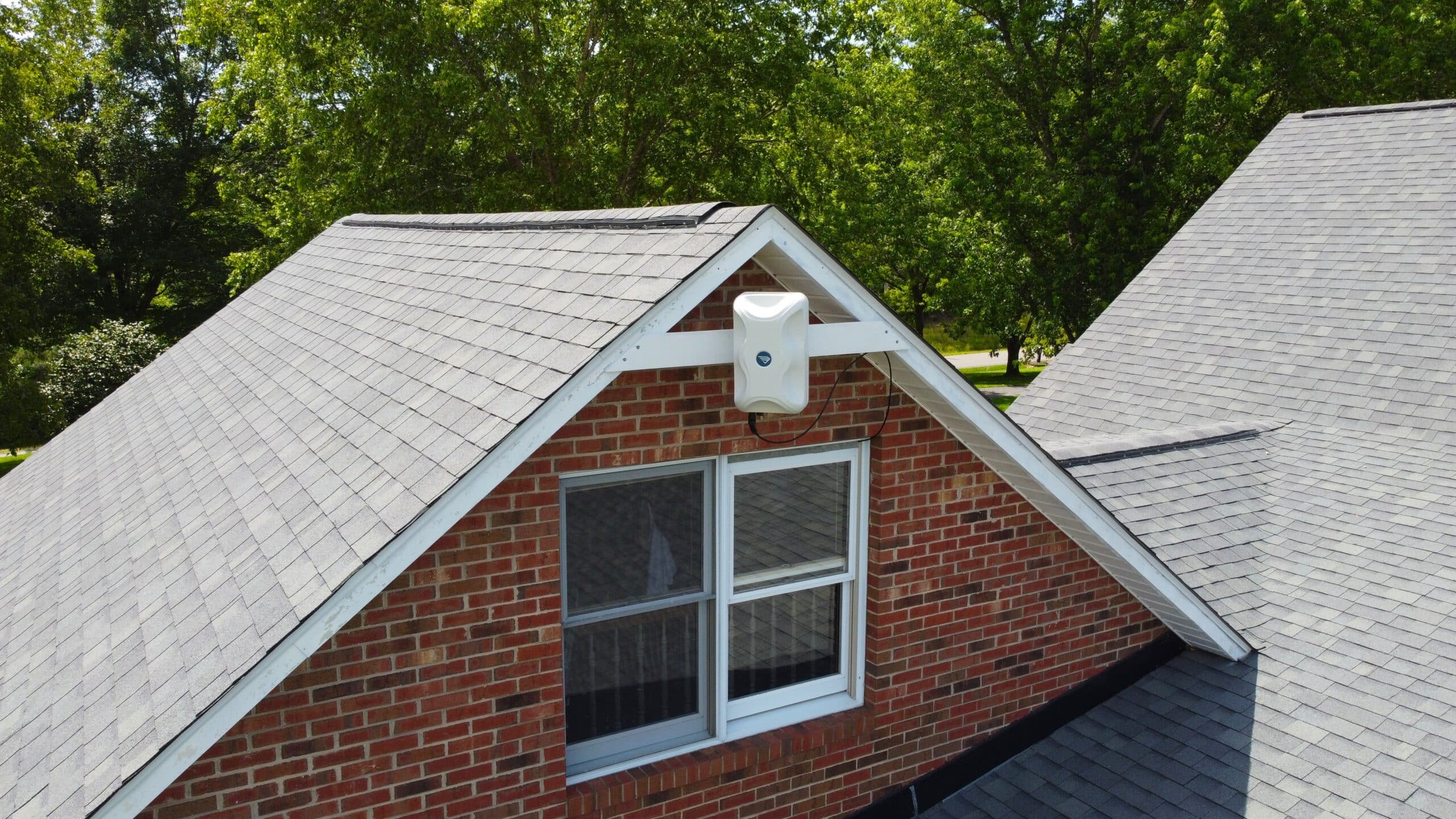

Introducing the QuadLink 4x4 MIMO Outdoor Antenna & Enclosure
Antenna & Enclosure: The Best of Both Worlds
It's a cellular modem antenna. It's an outdoor enclosure for your InvisaGig. Why buy both of those separately when you can get them both baked into a single hybrid product that streamlines both functions? As a cherry on top, the QuadLink cellular antenna and enclosure comes with an industry-leading 3 year warranty to provide peace of mind and lasting purchase protection.

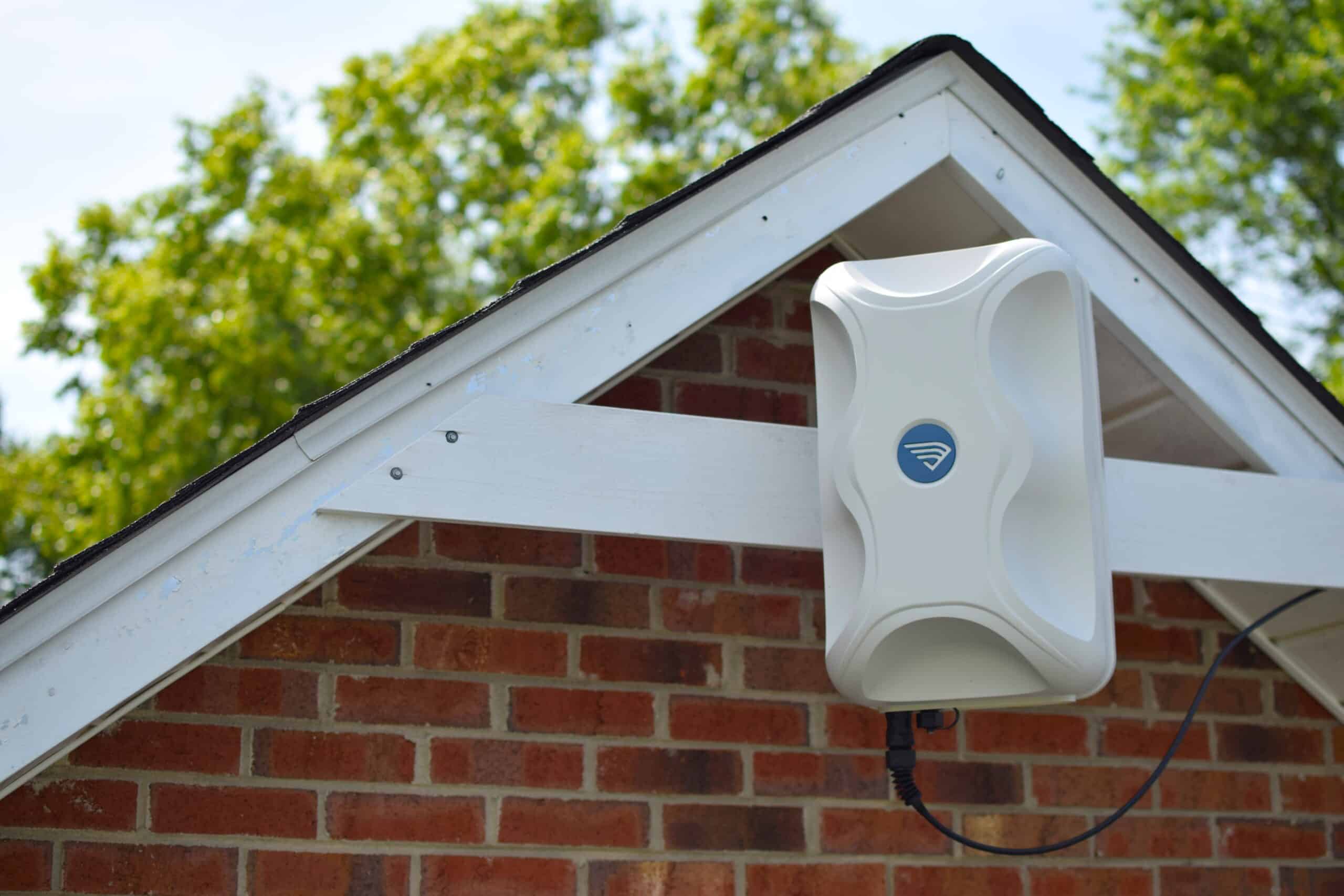

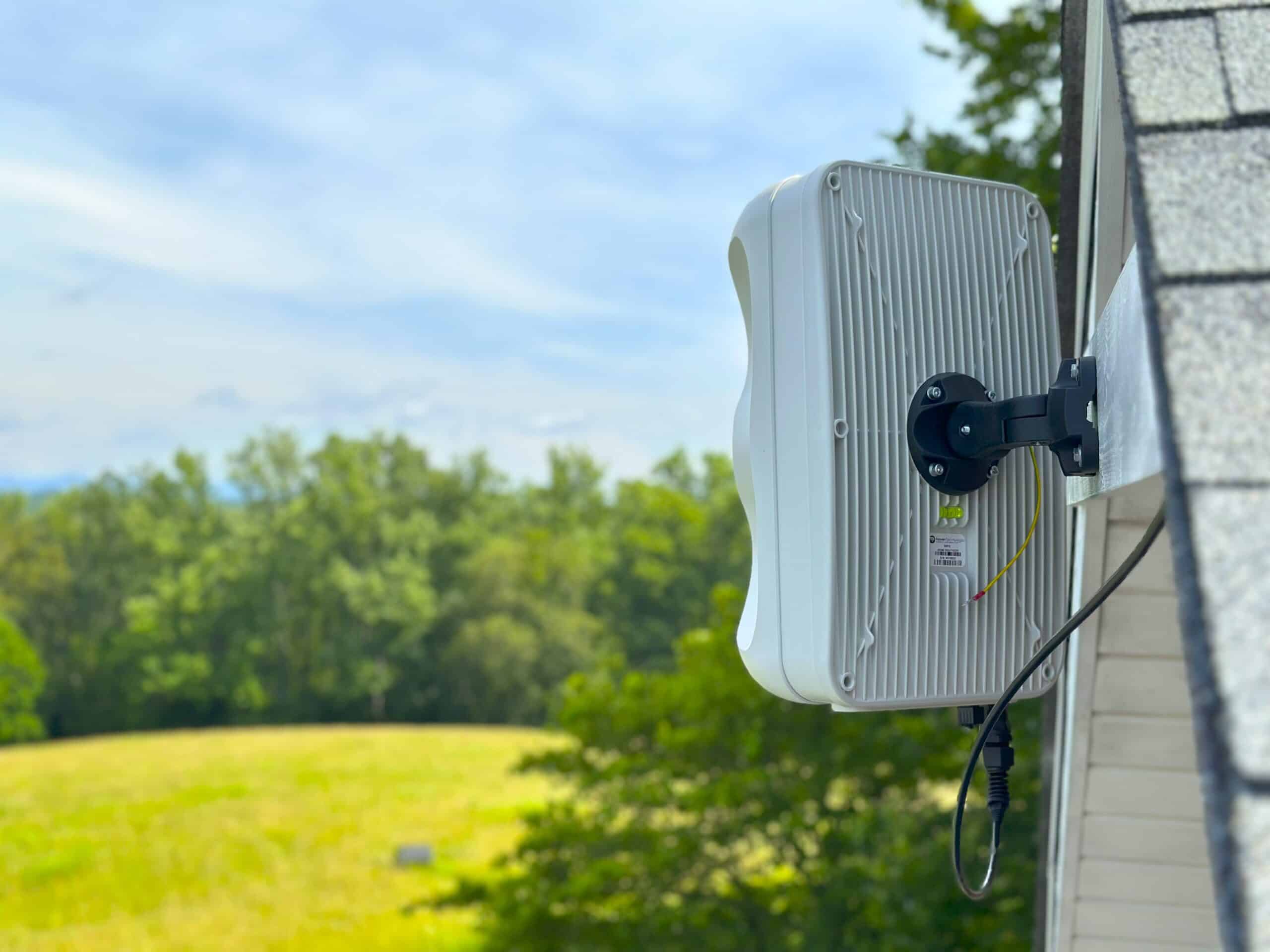

Everything You Need To Mount & Enclose InvisaGig
The QuadLink antenna includes everything you need to get your system up and running. We supply the 4×4 MIMO antenna with plenty of open enclosure space to keep heat levels down, and plenty of clearance for your modem to breathe. The QuadLink has a mounting plate made just for the InvisaGig modem, including a tool to secure the plate in place. The heavy duty articulating mounting system can be used on both flat wall surfaces and round masts or poles.

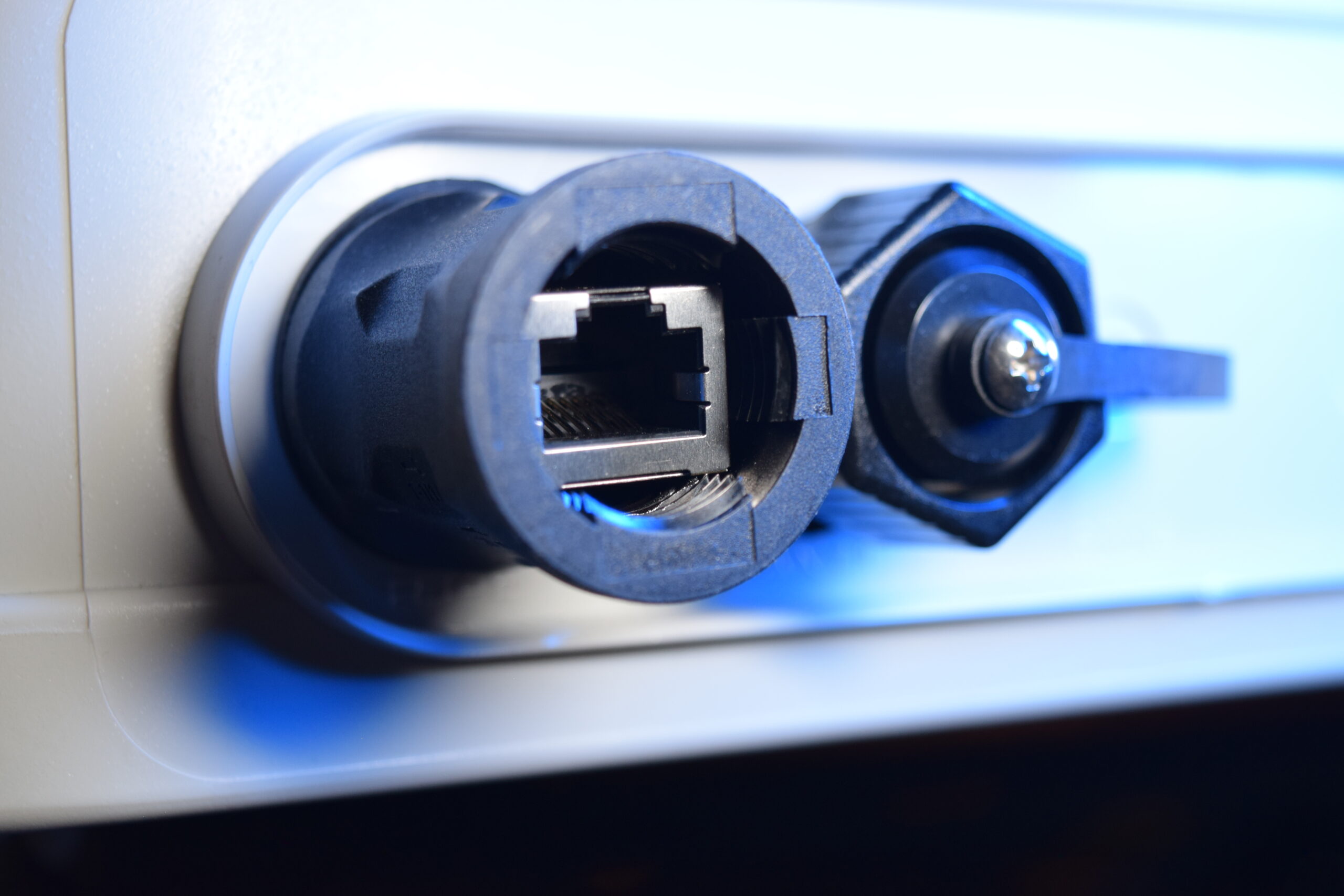

A Single Cable for Data & Power Supply
Available in configurations capable of operating through PoE, the QuadLink is truly cable efficient, allowing you to run just a single cable to its mounting place. And with a SIM slot on the outside of the enclosure case, you do NOT need to open the enclosure to change SIM cards.
Full Support for Maximum Cellular Connectivity
The QuadLink supports 4G and 5GNR bands in the frequency range from 600MHz – 6000MHz, in a full 4×4 X (±45°) polarized format. This means it works on ALL US carrier bands on both 4G and 5G systems (and many worldwide bands).
QuadLink Antenna & Enclosure System Specs
QuadLink Cellular Band Support
The QuadLink supports 4G and 5GNR bands in the frequency range from 600MHz – 6000MHz, in a full 4×4 X (±45°) polarized format. This means it works on ALL US carrier bands on both 4G and 5G systems (and many worldwide bands).
- Stand Alone 5GNR band support: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
- Non-Stand Alone 5GNR band support: n1 / 2 / 3 / 5 / 7 / 8 / 12 / 13 / 14 / 18 / 20 / 25 / 26 / 28 / 29 / 30 / 38 / 40 / 41 / 48 / 66 / 70 / 71 / 75 / 76 / 77 / 78 / 79
- LTE Band Support: B1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 13 / 14 / 17 / 18 / 19 / 20 / 25 / 26 / 28 / 29 / 30 / 32 / 66 / 71
- mmWave Support: Not Supported
QuadLink Antenna Specifications:
Antenna Gain by frequency range:
- 600 MHz to 960 MHz : 6 dBi
- 1700 MHz to 2700 MHz : 7 dBi
- 3300 MHz – 4600 MHz : 7 dBi
- 4700 MHz – 6000 MHz : 5.5 dBi
Components Included in the Full Kit Version:
- QuadLink Antenna Assembly
- Heavy duty articulating mounting system for flat wall or round post/pole mounting
- Hardware and tool for adjusting and securing the mount to the QuadLink
- InvisaGig custom mounting plate, and tool for securing the plate
- 48V 72W PoE injector with power cable
- 48V to 12V 3A PoE splitter
- Nano SIM card to Micro SIM card external to internal SIM slot
- 50 foot of CAT6 outdoor rated solid copper wire Ethernet cabling
- 3 year warranty
Components Included in the Antenna-Only Version:
- QuadLink Antenna Assembly
- Heavy duty articulating mounting system for flat wall or round post/pole mounting
- Hardware and tool for adjusting and securing the mount to the QuadLink
- InvisaGig custom mounting plate, and tool for securing the plate
- Nano SIM card to Micro SIM card external to internal SIM slot
- 3 year warranty
Questions about the InvisaGig 5G cellular modem?
InvisaGig is not only extremely simple to use but also incredibly fast. Experience the fastest speeds available with the latest in 5G cellular connectivity.
Experience painless configuration via the menu-driven web interface. Setup can be as easy as inserting a SIM card, depending on carrier and plan. If you do need to configure any settings in order to connect, numbered menu options with straightforward descriptions provide an intuitive setup experience. InvisiGig brings you the power of 5G without all the complexity.
InvisaGig is secure by design. With no WiFi or Bluetooth capability for hackers to exploit, you can rest easy knowing that the only connection into the unit is through its hardwired Ethernet port.
InvisaGig provides a blazing fast 5G internet connection to any device with an Ethernet port.
Already have a router? Maybe you even have one with a cellular modem, but you want an upgrade to take advantage of the latest 5G technology?
With InvisaGig, there is no need to go through the hassle of replacing your existing system just to get the fastest speeds available. Simply plug the InvisaGig unit into your router’s WAN port as a new Internet source and be up and running, at blazing speeds, in no time!
Need WiFi that supports more than the ~5-10 devices that most hotspots are limited to at one time? Connect InvisaGig to a full-fledged WiFi access point to support as many wireless clients as you need or connect to a WiFi router to provide internet to both wired and wireless devices.
Away from home with your laptop, desktop, gaming system, or tablet? Connect InvisaGig directly to your device’s Ethernet port or USB-to-Ethernet adapter for a quick, stable Internet connection. No router required.
Whether you have TVs, point of sale systems, security cameras, etc., InvisaGig can provide you with the Internet connectivity you need via direct Ethernet or USB-to-Ethernet adapter.
InvisaGig provides a direct Internet connection using 5G cellular technology. However, its implementation of 5G connectivity is unique in the market:
- InvisaGig is not a router and cannot be used directly with basic network switches.
- InvisaGig is not a WiFi system and has no wireless capabilities on its own (outside of 5G connectivity to the cellular network).
- InvisaGig is not a hotspot and is not battery powered.
- InvisaGig is not a ‘tinker-friendly’ platform and does not support modification of its underlying components.
- InvisaGig *is* a super simple, crazy fast connectivity platform which provides a 5G Internet connection to any connected Ethernet device.
Yes! As long as you have a physical SIM card that was activated in a device supported by your carrier, you can then put that SIM card into the InvisaGig cellular modem and it should work on that carrier according to your data plan.
InvisaGig works on every major telecom cellular network and the numerous MVNOs (Mobile Virtual Network Operators) that use the same networks. The InvisaGig modem can connect to every current cellular band in the USA, including those used by T-Mobile Home Internet, AT&T Internet Air, Verizon Home Internet, and more. Please review your carrier’s Terms of Use for further guidance.
InvisaGig is a fresh entry into the 5G connectivity space, intended to be a fully standalone Internet connectivity solution for use with with your existing Ethernet device and/or network router. Our vision going forward is to make InvisaGig a fully integrated device, certified and supported on all major carrier networks.
Our inaugural release features the powerful Quectel RM520N-GL modem at its core, combined with both commodity and bespoke hardware components that we believe intersect at the sweet spot of form and function. Combined with our powerful yet intuitive user interface that nearly anyone can use, InvisaGig is the culmination of our efforts to immediately deliver customers the turnkey 5G connectivity solution they have been demanding.
As InvisaGig moves beyond our initial platform release towards a fully integrated and certified device, we commit to upgrading all early platform units to certified units at no additional cost (minus shipping); pending warranty registration.
As we seek feedback from our passionate user community we are open to feature requests and additional constructive input as we map out the product roadmap ahead. Please submit any requests or ideas via our site contact form.
We’re thrilled that we were able to bring InvisaGig to the marketplace and appeal to both home / SMB users, as well as Managed Service Providers. Check out our overview article that showcases the benefits of using the InvisaGig cellular modem for MSPs. For Managed Service Providers, the future of internet connectivity is wireless, and InvisaGig represents the next evolution of fast, reliable network access for your customers. InvisaGig delivers a versatile, cost-effective solution that meets the needs of both individuals and demanding businesses.
Reliable, high-speed internet access is no longer the domain of expensive fiber or satellite services. With the InvisaGig solution, users can enjoy performance comparable to traditional options while avoiding their pitfalls — leading to better connectivity, lower costs, and superior flexibility for the MSPs that offer it.
Whether the customer is in a rural area, seeking temporary internet access, or looking for a high-speed, cost-efficient alternative for their business, MSPs no longer need to rely on expensive and error-prone solutions. By adopting a connectivity solution with InvisaGig at its core, MSPs can take control of the internet connection in a way that is both future-proof and scalable. Contact InvisaGig Technologies today to learn more and to discover how cutting-edge solutions like these can be just the right fit for almost any use case.
